Vertical vs horizontal bike wall mount — here's the verdict up front. Vertical, hanging by the front wheel: maximum space saving, the garage and hallway favorite. Horizontal, cradled by the top tube: the best-looking option and the easiest to use daily. Swing-away or fold-flat: the fix for narrow hallways where every inch matters. The right pick then comes down to your bike — an 8 kg fixie and a full-suspension MTB don't hang the same way. This guide compares all three systems, with a table, bike-by-bike advice and the mistakes that scratch frames.
The Vertical Mount: By the Front Wheel, Maximum Space Saving
A vertical bike mount hangs your bike by the front wheel, perpendicular to the wall — no other system uses less wall width. A bike stored vertically takes up roughly 24 inches (60 cm) of wall, versus about 6 feet lying horizontal. In a garage, you can line up three or four bikes in the footprint one bike would claim sideways.
The trade-off is effort. You have to rear the bike up and lift the front wheel onto a hook set at 6 feet or higher. With a 15 lb road bike, it's nothing. With a 35 lb enduro rig, it's a workout — and with an e-bike, forget it. Check your ceiling height too: a bike standing on its rear wheel needs around 6'3" to 6'6" of clearance.
This is the everyday workhorse system: commuter bike in the hallway, family fleet in the garage, N+1 fully embraced.

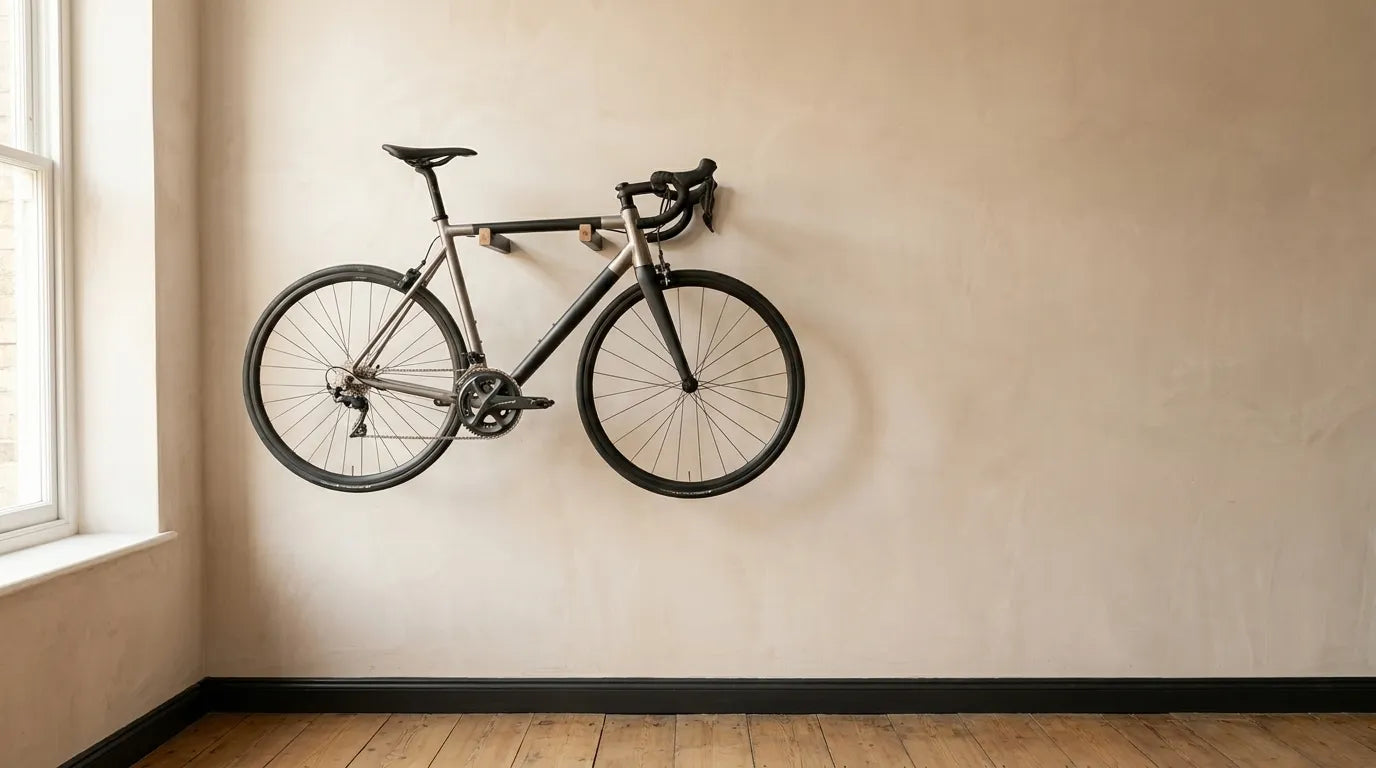

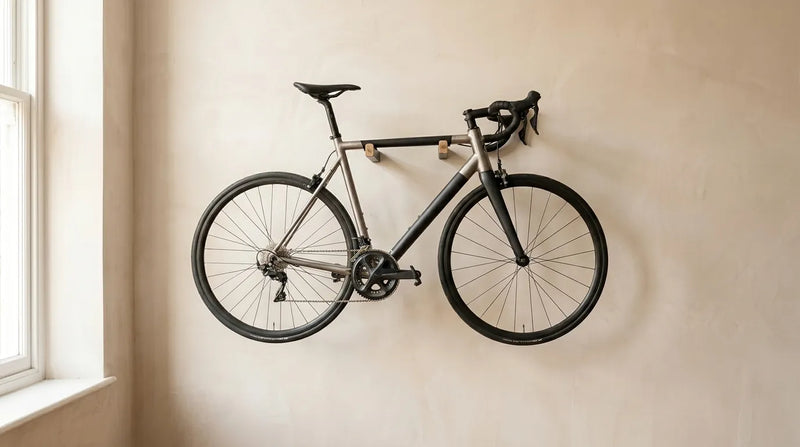

The Horizontal Mount: By the Top Tube, the Decor and Easy-Access Option
A horizontal mount cradles your bike by the top tube, parallel to the wall — the best-looking system and the easiest to live with. You lift the bike about 8 inches, rest it on the arms, done. No rearing it up, no maneuvering: minimal effort, even several times a day.
Visually, nothing comes close. The bike reads like wall art: frame lines, drivetrain, the sweep of the bars. It's the natural home for a minimalist single-speed, a vintage steel road bike or the gravel rig you're proud of. A solid wood bike wall mount with felt-lined arms turns a living room into a gallery.
Its limit is sideways sprawl. The bike occupies its full length on the wall, and the handlebars push it 10 to 16 inches into the room. Save it for an open stretch of wall.
The Swing-Away or Fold-Flat Mount: Built for Narrow Hallways
A swing-away mount hangs the bike vertically, then pivots it flush against the wall — the answer for tight hallways and storage nooks. Once rotated, the bike runs along the wall instead of pointing into the walkway, reclaiming 8 to 12 inches of depth: exactly the margin you need to squeeze past with groceries.
Some models also fold flat when empty: the arm tucks away once the bike is out, and your hallway is a hallway again. The mechanism adds a little cost and one extra movement when hanging up, but in a narrow apartment it's the only system that makes wall storage genuinely livable. For the full picture of indoor options, read our apartment bike storage guide.
Comparison Table: The 3 Systems Side by Side
| Criterion | Vertical (front wheel) | Horizontal (top tube) | Swing-away / fold-flat |
|---|---|---|---|
| Space used | ★★★ minimal (≈ 24" wide) | ★ full bike length | ★★ sits flush to the wall |
| Effort to hang | High (rear the bike up) | Low (lift 8 inches) | Medium (hang + pivot) |
| Best bike type | Road, gravel, light MTB | All, fixie to MTB | Everyday commuters |
| Decor appeal | Decent | Excellent (gallery style) | Functional |
| Price range | $ | $ to $$ (designer wood) | $$ to $$$ |
Which System for Which Bike?
Your bike's weight and accessories often make the decision for you. Run through this checklist before you drill:
- Road or gravel bike (15–24 lbs): anything works. Light enough to hang vertically, gorgeous horizontally. Choose by room, not by bike.
- Mountain bike (24–37 lbs): horizontal stays comfortable; vertical takes real arm strength with a full-suspension build. Watch the 780–800 mm bars — they push the bike further off the wall.
- City bike with fenders or a basket: skip tight wheel hooks — fenders get in the way on vertical mounts. A horizontal cradle under the top tube, or a swing-away with a deep wheel channel, works better. Make sure the basket clears the wall.
- Carbon frame: never clamp the tubes. Pick a mount where the frame rests on wide, padded arms — or a vertical hook by the wheel, which doesn't touch the frame at all.
- E-bike (40–62 lbs): too heavy for most standard mounts, and impossible to rear up onto a vertical hook. It needs reinforced hardware — we wrote a dedicated guide to hanging an electric bike.
Handlebar and Pedal Clearance: The Inches That Decide Everything
Measure your handlebar width before you buy — it sets how far the bike stands off the wall. Horizontally, a 780 mm MTB bar pushes the bike nearly 16 inches into the room; road drop bars, only about 10. Vertically, the bars rotate along the wall, but the pedal becomes the thing that sticks out — think about the shins walking past.
Two rider tricks: turn the bars a quarter turn if your stem allows it, and park the wall-side crank arm pointing up. On a swing-away mount, those two adjustments are the difference between a usable hallway and a daily slalom.
Protecting Your Rims and Frame
A good mount leaves no marks — not on the rim, not on the frame, not on the wall. Three checks:
- The vertical hook must be rubber- or silicone-coated and wide enough for your tire: a bare metal hook scratches rims and can score a tubeless sidewall.
- Horizontal arms should carry the top tube on felt, EVA foam or cork — non-negotiable on a carbon frame or a paint job you care about.
- The wall needs a pad or plate behind the rear tire where it touches. No more black tire arcs on the paint.
Mini FAQ
Does hanging a bike vertically damage the wheel or spokes? No. Your rim and tire carry your full body weight on every ride; a hanging bike's 18–35 lbs barely loads them. The only requirement: a coated hook sized for your tire width.
Will it hold on drywall? Yes — with anchors rated for the bike's weight, or better, screws into a stud. The full method is in our guide to mounting a rack on drywall.
Can I put two bikes on one mount? Only if the mount is designed for it, with the max load to match. Two vertical hooks side by side, staggered in height so the bars overlap, remain the safest setup.
Which system for a light bike I ride every day? Horizontal: two seconds to grab it, two to put it back. Vertical earns its keep when space is genuinely short.
The Bottom Line
Go vertical if space is your priority, horizontal if your bike deserves to be displayed and comes off the wall often, swing-away if your hallway is under three feet wide. Whatever you choose, check the max load, the handlebar clearance and the padding at every contact point — your frame will thank you.
